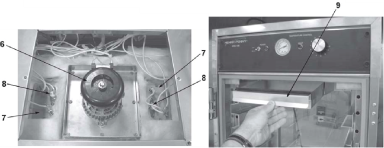

| Item No. | Description | Function |
|---|---|---|
| 1 | Power Switch | A toggle switch that switches electrical current to the unit |
| 2 | Thermometer | Indicates the air temperature inside the cabinet |
| 3 | Thermostat | An electromechanical device that controls the temperature inside the cabinet |
| 4 | Power Light | Illuminates when the power switch is in the ON position and the components are energized |
| 5 | Heat Light | Illuminates when the thermostat turns on the heaters |
| 6 | Blower Motor | Used to recirculate the hot humid air throughout the cabinet |
| 7 | Heater | Two, open-resistance, heaters that provides heat throughout the cabinet; 120 VAC-600W |
| 8 | High Limit | A safety device mounted next to the heater which protects the unit from overheating |
| 9 | Water Pan | Holds the water for creating humidity in the cabinet |
