Daily Filter

Burn Risk

To avoid burns, use PPE when handling filter pan or filter pan lid.

Burn Risk

To avoid burns, use PPE when lifting elements.

Burn Risk

To avoid burns, use PPE when filtering oil or cleaning vat.

Be sure to use all McDonalds approved safety equipment including, apron, face shield and gloves. Never begin filtering or Deep Clean process until you’re wearing all safety gear. Hot oil can cause severe burns.

NOTICE -

To avoid equipment damage, do not use element lifting tool near the high limit bulb.

NOTICE -

Clean brushes and utensils used for cleaning and cooking daily.

NOTICE -

Only use McDonald's approved KAY® brand cleaners and cleaning tools

The Daily Filter is similar to the Express Filter but includes additional cleaning steps to provide a more thorough vat cleaning. It differs in the following ways:

  • Includes steps to scrub and rinse the vat.

  • Provides the option to repeat the wash cycle as needed.

  • Delivers a more thorough cleaning of the vat.

  • Must be performed once each day to remove buildup and debris from the sides and bottom of the vat.

The Daily Filter is typically performed at the end of the day after frying operations have been completed. However, it may be performed during any period when the fryer is not in use. The steps of the Daily Filter are explained below:

  1. Put on Personal Protective Equipment (PPE).

  2. Ensure filter pan and pan cover are properly in place with the filter pipe tightly connected.

  3. Tap the Settings button, and then tap to enter the Oil & Filter menu.

  4. Tap Daily Filter. For split vats, choose left or right side.

  5. Skim the vat.

  6. Once skimming is complete, tap Start Filter. Draining displays.

    Oil drains to the filter pan. After oil drains, the prompt Scrub Vat displays.

  7. Scrub the sides and bottom of the vat with KAY® QSR Fryer Cleanser, the Ecolab Hi-Temp Pad Holder & Pad, and the Ecolab Hi-Temp Detail Brush.

    Note: Give extra attention to cleaning the fasteners on the heating element bracket to ensure that no build up remains in the pockets of the screws.

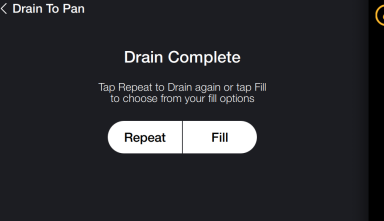

  8. Drain Complete displays once scrubbing is complete. Lower the heating elements and tap the Start Wash button to continue.

    9. NOTICE: Use brushes only to scrub the heating element and sides and bottom of the vat, otherwise damage may occur to the heating element and / or vat.

  9. Washing - Oil pumps to wash the crumbs and debris down the drain.

  10. When the wash completes Wash Complete displays. Tap one of the following:

    • Repeat Wash if additional cleaning is necessary.

    • Start Rinse to continue.

  11. Rinsing - The drain valve closes and oil fills and drains from the vat to rinse. The drain opens again to drain the oil.

  12. Once completed, Rinse Complete displays. Tap one of the following:

    • Repeat Rinse to rinse again.

    • Start Polish to continue.

    Note: The L-tipped brush and the gong brush may be used to loosen crumbs and debris during the rinse step.

  13. Polishing - The polish cycle is a 5 minute extended wash cycle. During this time, oil is pumped into the vat while the drain valve remains open. This extended filtration remove small particles and contaminates as the oil continuously cycles through the filter. After 5 minutes, the Refill step automatically begins.

  14. Refilling displays and the drain valve closes. Please wait while oil fills the vat.

  15. Once vat is full, Refill Complete displays. Tap one of the following:

    • Start Heat to continue to the next step.

    • Skip Heat to keep the vat off.

  16. Heating - The temperature of the oil is heated back to set point temperature. The cooking screen is displayed.

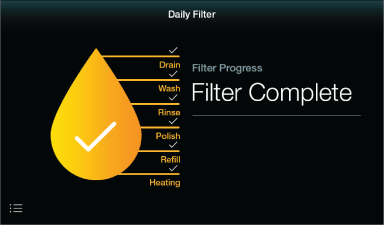

    Note: When the filter is complete there will be a checkmark next to each stage showing it has been completed.
