Component Overview

Model Configuration

The fryer is available in one, two, three and four vat models, a two well is displayed below. Each model is available in Full (1) and Split (2) vat combinations.

The fryer is available in two, three and four vat models, a two well is displayed below. Each model is available in Full (1) and Split (2) vat combinations.

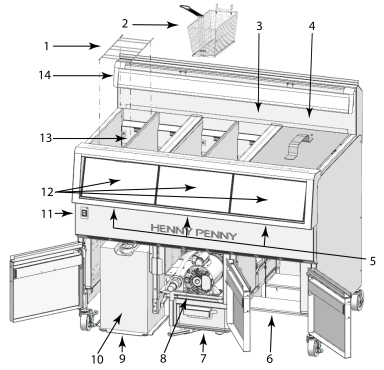

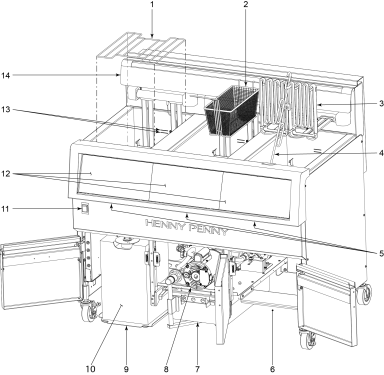

Operating Components

Item Name Description
1 Basket Rest Supports the fry basket and keeps it from rubbing the heating element.
2 Fry Basket Used to place product into the oil for cooking.
3 Heating Element Transfers energy to heat the oil. The heating elements tilt for easy cleaning of the vat.
4 Heating Element Lift Tool Tool used to lift and support the heating element for easy cleaning of the vat.
5 Control Resets (not shown) Resets a control without turning power off to the entire fryer.

6

Night Cover Storage

Area to store night covers during operation.

7 Filter Pan Removes crumbs and oil impurities during filtration.
8 Filter Motor Pumps oil during filtration.
9 JIB Shelf Supports the JIB (jug-in-box).
10 JIB (not included) Provides a supply of oil for the auto-top-off system. Fresh oil is pumped from the JIB when the oil level is low.

11

Main Power Switch

Turns on each control. Heat to each vat is turned on by each touchscreen control.
12 Touchscreen Control

Provides the interface between the user and the vat.

13 Oil Level Indicators Indicates proper oil level when oil is at set point temperature or room temperature.
14 Basket Hanger Supports baskets when not in use, or when draining excess oil from product.
