Specifications
Electrical Specifications
| Volts | Phase | Hertz | kW/vat | Amps/vat | Wire | Cord & Plug /vat |
|---|---|---|---|---|---|---|
| 208 | 3 | 60 | 22 | 65 | 3+G | Cord: #2/4 SOOW 10' power cord *Plug optional: 100 Amp 4100R9W Pin and Sleeve |
Oil Capacity
55 lbs (25 L) per vat

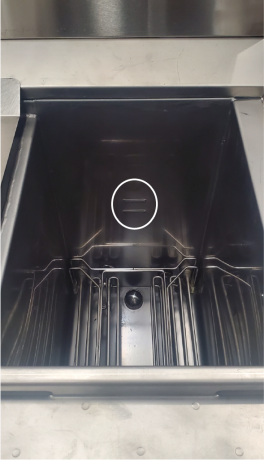

Vats have 2 level indicator lines inscribed on the rear wall of the vat. The upper-most line shows the proper oil level when at cooking temperature. The lower-most line shows the proper oil level when at room temperature.

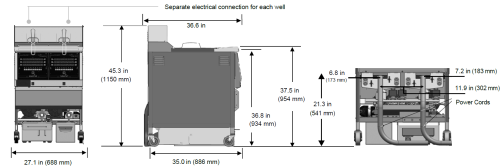

Dimensions
CFE 520
CFE 530
520 | 530 | |
Width | 27.1 in (688 mm) | 39.0 in (991 mm) |
Depth | 36.6 in (930 mm) | 36.6 in (930 mm) |
Height | 45.3 in (1150 mm) | 45.3 in (1150 mm) |
Weight | 415 lb (188 kg) | 530 lb (240 kg) |
Crated Dimensions
520 | 530 | |
Length | 32 in (813 mm) | 43 in (1092 mm) |
Depth | 46 in (1164 mm) | 46 in (1164 mm) |
Height | 56 in (1422 mm) | 56 in (1422 mm) |
Volume | 47.7 ft3 (1.4 m3) | 64.1 ftɜ (1.8 mɜ) |
Shipping Weight
520 | 530 | |
Shipping Weight | 580 lb (263 kg) | 730 lb (331 kg) |
Heating Specifications
520 | 530 | |
kW | 22 kW per vat / 44 kW total | 22 kW per vat / 66 kW total |
