Specifications
Electrical Specifications
Refer to the following table for supply wiring and fusing.
| Model | Volts | Phase | Hertz | kW/Vat | Amps/Vat | Wire |
|---|---|---|---|---|---|---|
|
OFE/OEA |
208 | 3 | 60 |
22.0 |
62.0 | 3+G |
| OFE/OEA | 240 | 3 | 60 | 22.0 | 53.0 | 3+G |
| OFE/OEA | 380-415 | 3 | 50 | 22.0 | 32.5 | 3NG |
| OFE/OEA | 480 | 3 | 60 | 22.0 | 27.0 | 3+G |
| OFG/OGA | 120 | 1 | 60 | n/a | 12.0 | 2+G |
|
OFG/OGA |
230 |
1 |
50 |
n/a |
6.2 |
1NG |
Oil Capacity
OFE/OEA 34X - 80 lbs or 38 liters per full vat
OFG/OGA 34X - 90 lbs or 43 liters per full vat

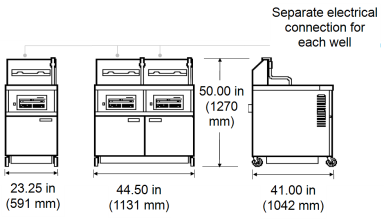

OFE and OFG Dimensions
- Flue Dimensions: 2.78 in x 1.78 in (2.852 in – 0.036 in – 0.036 in) x (1.816 in – 0.036 in)
- Vat Dimensions: 18 in x 18 in (not including beachhead), 18 in x 24 in (including beachhead)
Uncrated Dimensions
|
OFE/OFG 341 |
OFE/OFG 342 |
|
|
Width |
23.25 in (591 mm) | 44.50 in (1131 mm) |
|
Depth |
41.00 in (1042 mm) | 41.00 in (1042 mm) |
|
Height |
50.00 in (1270 mm) | 50.00 in (1270 mm) |
Crated Dimensions
|
OFE/OFG 341 |
OFE/OFG 342 |
|
|
Width |
46.00 in (1169 mm) | 51.00 in (1296 mm) |
|
Depth |
30.00 in (762 mm) | 46.00 in (1169 mm) |
|
Height |
66.00 in (1676 mm) | 66.00 in (1676 mm) |
|
Volume |
53 ft³ (1.5 m³) | 90 ft³ (2.5 m³) |
Shipping Weight
|
OFE 341 |
OFE 342 |
OFG 341 |
OFG 342 |
|
|
Shipping Weight |
348 lbs (158 kg) | 554 lbs (251 kg) | 391 lbs (178 kg) | 650 lbs (295 kg) |
Heating Specifications
|
OFE 341 |
OFE 342 |
OFG 341 |
OFG 342 |
|
|
Burners |
n/a | n/a | 3 burners | 6 burners |
|
BTU/hr |
n/a | n/a | 120,000 BTU/hr | 240,000 BTU/hr |
|
kW |
22.0 kW | 44.0 kW | 31.7 kW | 63.4 kW |
|
Gas Line |
n/a | n/a | 0.50 in | 0.75 in |

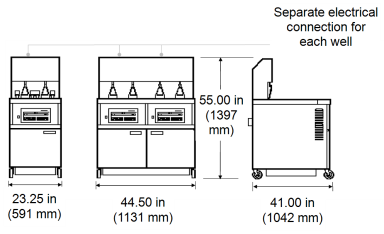

OEA and OGA Dimensions (with Autolift)
Uncrated Dimensions
|
OEA/OGA 341 |
OEA/OGA 342 |
|
|
Width |
23.25 in (591 mm) | 44.50 in (1131 mm) |
|
Depth |
41.00 in (1042 mm) | 41.00 in (1042 mm) |
|
Height |
55.00 in (1397 mm) | 55.00 in (1397 mm) |
Crated Dimensions
|
OEA/OGA 341 |
OEA/OGA 342 |
|
|
Width |
46.00 in (1169 mm) | 51.00 in (1296 mm) |
|
Depth |
30.00 in (762 mm) | 46.00 in (1169 mm) |
|
Height |
66.00 in (1676 mm) | 66.00 in (1676 mm) |
|
Volume |
53 ft³ (1.5 m³) | 90 ft³ (2.5 m³) |
Shipping Weight
|
OEA 341 |
OEA 342 |
OGA 341 |
OGA 342 |
|
|
Shipping Weight |
381 lbs (173 kg) | Contact Henny Penny | 413 lbs (188 kg) | Contact Henny Penny |
