Troubleshooting Radio Software Setup

Use these steps to determine if the control Radio (dongle) hardware is installed and the control's software configured correctly.

Verify Radio Software Setup

Start at the appliance and determine the following:

  1. From the number one control, navigate to Menu > Advanced > Network Setup. Is the network enabled (the Enable Network slide button is green)? If Yes continue at Enabling the WiFi Radio, if No continue below.

  2. Click the Enable Network slide button. Does the Enable Network slide button turn green? If Yes continue at Enabling the WiFi Radio, if No continue below.

  3. If the region selection during the initial setup is not approved, the Enable Network slide button will not be allowed to enable the network. Clicking on the slide switch will have no effect. Contact Technical Support.

Enabling the WiFi Radio

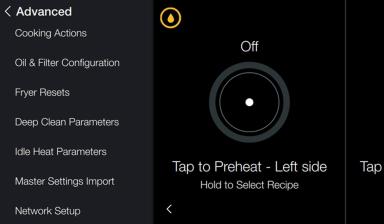

Advanced

  1. Navigate to Menu > Advanced > Network Setup.

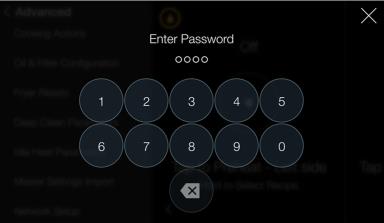

    2. Password

  2. Enter the password, either service (1122) or manager (1234).

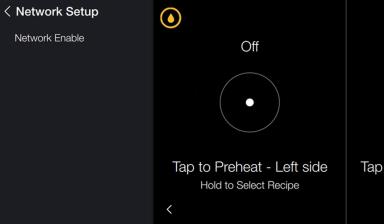

    3. Network Setup

  3. Select Network Enable.

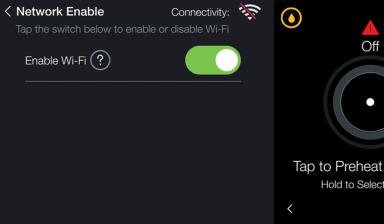

    4. Network Enable On

  4. Tap the slide button to enable Wi-Fi.

    • If the gray slide button turns green, the dongle is active.

      • A Wi-Fi symbol with a red strike-thru line indicates enabled but not connected to the local access point.

      • A Wi-Fi symbol without a red strike-thru line indicates enabled and connected to the local access point.

    • If the gray slide button remains gray, the region selection during the initial setup is not approved, the user will not be allowed to enable the network. Clicking on the slide switch will have no effect.
