Fill Vat

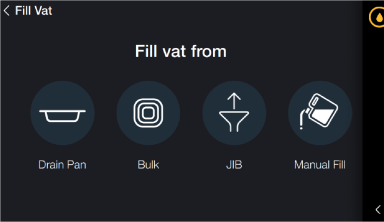

The Fill Vat option provides four options to fill the vat with oil. Tap the desired fill method icon and follow the prompts to fill the vat with oil.The four fill options are as follows:

  • Drain Pan - Tap Drain Pan then tap and hold Fill until the drain pan is empty. Select Done when finished.

  • Bulk - Option available in a future software release.

  • JIB - Tap JIB then tap and hold Fill to fill the vat from the JIB, for an understanding of fill indicators. Select Done when finished.

  • Manual Fill - Manually pour oil from a JIB into the vat. Tap Done when filled. Note: To save time, use the Manual Fill option to fill an empty vat with oil rather than the slower option to fill the entire vat from th JIB.
