Updating Software

Content Translation

Use your web browser to translate this page if needed.

Training

Watch the VIDEO walk-thru of the following content.

Overview

Like your cell phone or laptop the fryer requires occasional software updates. Currently, software updates must be completed in a two step process:

  1. Download the software update to a USB drive.

  2. Upload the software update to each control.

Download the Software Update to a USB Drive

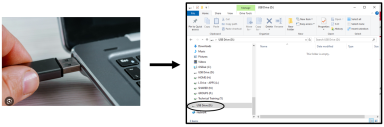

  1. Insert a blank USB drive. Delete any old files if they exist.

  2. Download the latest version of the software.

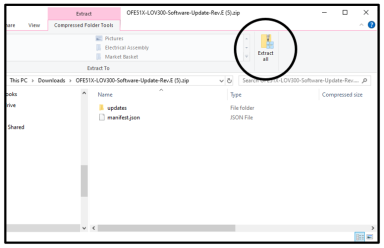

  3. Open the downloaded .zip folder and select Extract all. NOTE: You may need to right click to find the Extract all option.

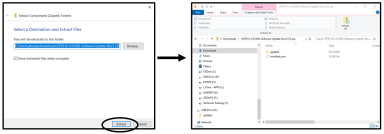

  4. Select Extract and the extracted folder opens.

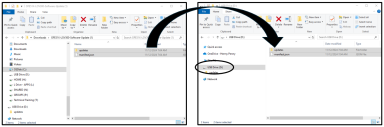

  5. Drag the extracted updates folder and the manifest.json file to your USB Drive. NOTE: Your USB drive should look like the folder on the right when complete.

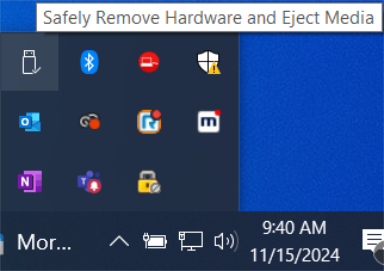

  6. Safely remove your USB drive. NOTE: This process varies by operating system.

Upload the Software Update to the Fryer's Control

IMPORTANT: After loading the software update onto the first control, a software version mismatch may display. Continue, the message will resolve when all the controls are updated.

  1. Ensure all timers have completed.

  2. Turn the main power switch off, and then wait for one full minute.

  3. Turn the main power switch on, and then wait for the preheat screen to display.

  4. Starting at the left control, just above the power switch, insert the USB drive into the control's USB port.

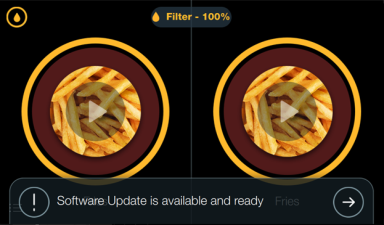

  5. Wait. A pop-up screen displays.

  6. Click the arrow that displays in the lower-right corner of the screen.

  7. Enter password: 1122.

  8. Under Software Update, tap download and install.

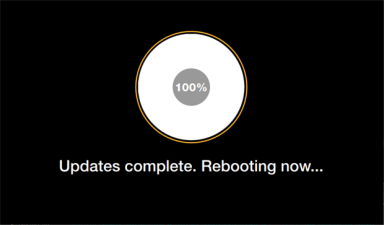

  9. Once the update completes, and the control reboots to the preheat screen, repeat steps 4 thru 8 on the remaining controls.
