ODS 300 and 310 Specifications

Model Configuration and Identification

There are two basic configurations. The 300 for Evolution Elite and LOV fryers, and the 310 for the F5 fryer. The main difference between the two models is the downpipe, which runs between the drain pan and the oil pump, and the drain pan switch. The 300 model uses a straight down-pipe and a mechanical drain pan switch, and the 310 uses a curved flex-pipe and magnetic drain pan switch.

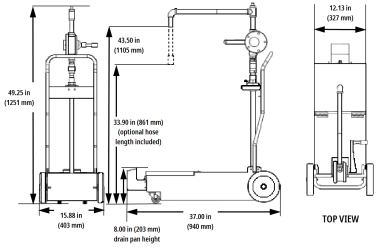

Dimensions and Weights

Uncrated Dimensions

	300 and 300.05	310
Width	15.88 in (403 mm)	15.88 in (403 mm)
Depth	37.00 in (940 mm)	37.00 in (940 mm)
Height	49.25 in (1251 mm)	49.25 in (1251 mm)
Height to dispose	43.00 in (1105 mm)	43.00 in (1105 mm)
Height of drain pan	8.00 in (203 mm)	8.00 in (203 mm)

Crated Dimensions

	300 and 300.05	310
Width	30.00 in (762 mm)	30.00 in (762 mm)
Depth	21.00 in (533 mm)	21.00 in (533 mm)
Height	20 in (508 mm)	20 in (508 mm)
Volume	7.3 ft³ (0.20 m³)	7.3 ft³ (0.20 m³)
Shipping Weight	62.00 lb (28.00 kg)	62.00 lb (28.00 kg)
