Specifications
Electrical Specifications
Refer to the following table for supply wiring and fusing.
| Volts | Phase | Hertz | kW/Vat | Amps/Vat | Wire |
|---|---|---|---|---|---|
| 380 | 3 | 50 | 14 | 21.2 | 3NG |
| 400 | 3 | 50 | 14 | 20.2 | 3NG |
| 415 | 3 | 50 | 14 | 19.45 | 3NG |
Oil Capacity
55 lbs (25 kg) or 29 qts (27 liters) per full vat
27 lbs (12 kg) or 14 qts (13 liters) per split vat
Dimensions

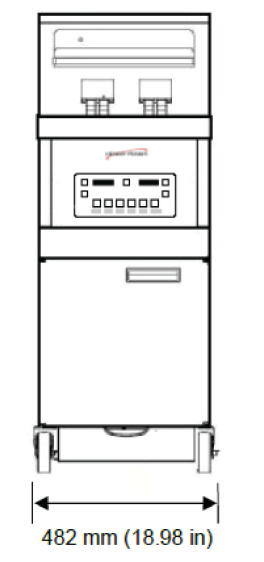

OFE 141 Width

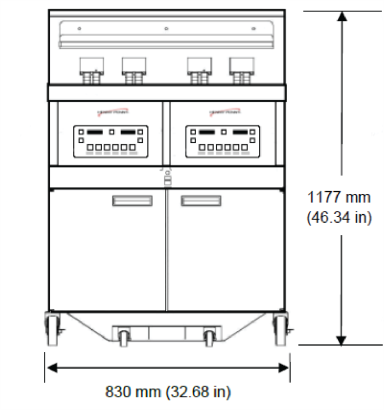

OFE 142 Width

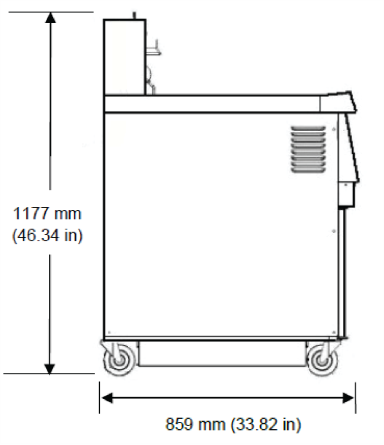

OFE 14X Depth

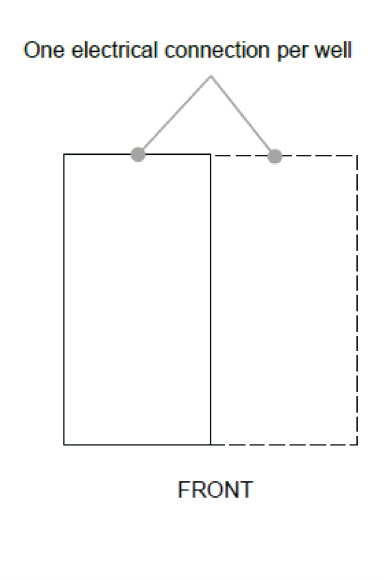

OFE 14X Electrical Connections
Uncrated Dimensions
141 | 142 | |
Width | 18.98 in (482 mm) | 32.68 in (830 mm) |
Depth | 33.82 in (859 mm) | 33.82 in (859 mm) |
Height | 46.34 in (1177 mm) | 46.34 in (1177 mm) |
Crated Dimensions
141 | 142 | |
Width | 37.00 in (950 mm) | 37.00 in (950 mm) |
Depth | 24.00 in (600 mm) | 36.50 in (930 mm) |
Height | 52.00 in (1325 mm) | 52.00 in (1325 mm) |
Volume | 27 ft³ (0.75 m³) | 38 ft³ (1.17 m³) |
Shipping Weight
| Vats | 141 | 142 |
2 full | 264 lb (120 kg) | 462 lb (210 kg) |
